This page describes the IBM SMS card "MQ", and is part of the SMS card database.

Function of the card:
Clamped Oscillator

Part number:371646

Symbol:OSC

OSC: Oscillator. A free-running non-stable muitivibrator used to provide pulses of a given frequency and amplitude.

References:

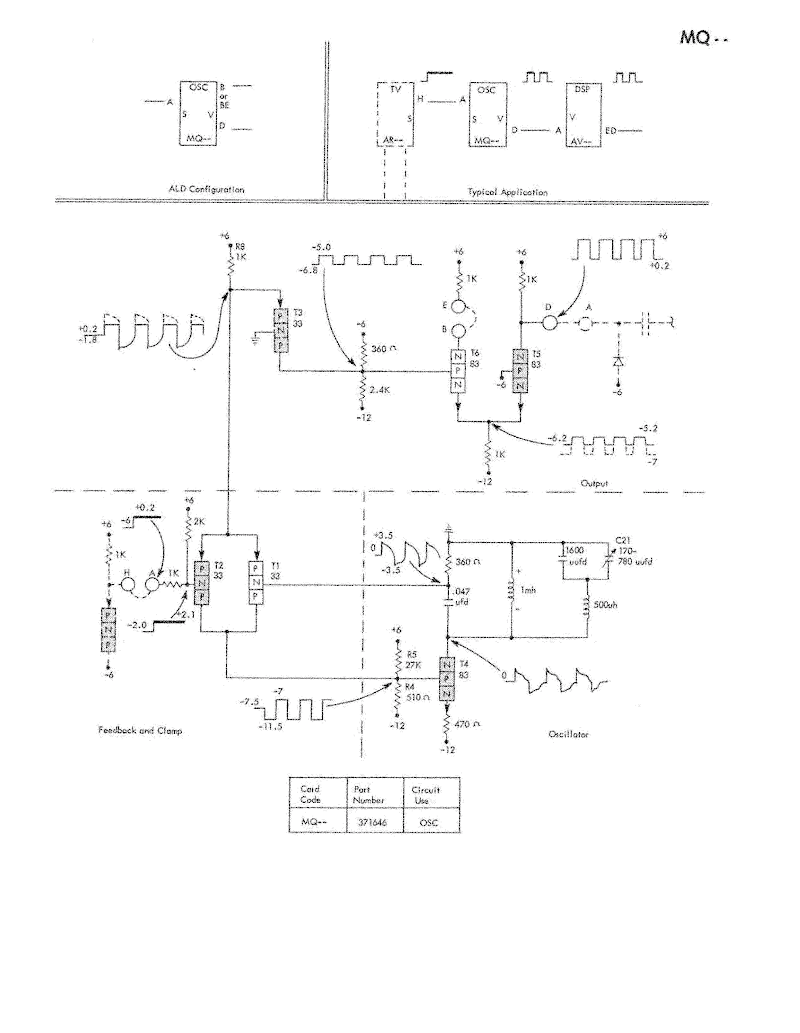

IBM Standard Modular System, Component Circuits, p224,225.
This page created by Ken Shirriff, 2015.
