This page describes the IBM SMS card "JN", and is part of the SMS card database.

Function of the card:
CTDL-Trigger Gate Extender

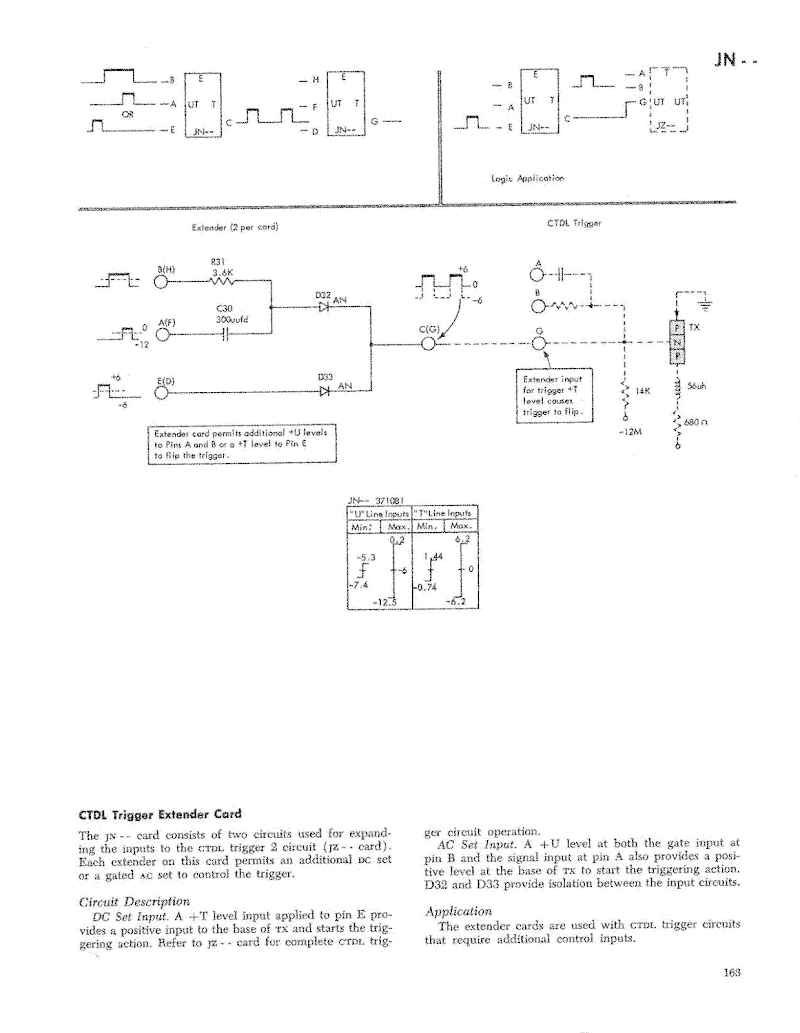

CTDL Trigger Extender Card

Complemented Transistor Diode Logic (CTDL) is IBM's term for a form of diode-transistor logic.

Trigger is IBM's term for a flip flop or latch.

Part number:371081

Field replacement part number:371081

Customer Eng reference number:729881

Used in:IBM 1401,IBM 7070

Symbol:E

E: Extender. Provides additional inputs to logical blocks and triggers. Adds to drivers the ability to drive more loads.

Family: CTDL high speed

JN JN

References:
IBM Standard Modular System, Component Circuits, p163.
2_2 SMS Cards, p37,38.
