Function of the card:

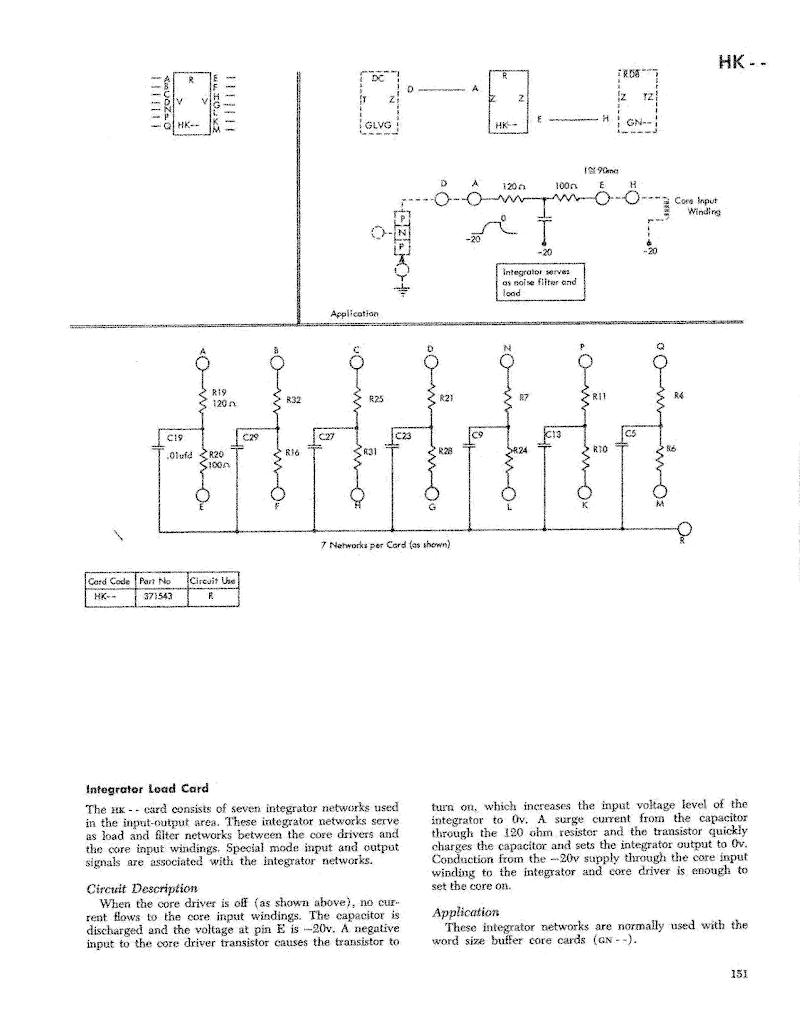

Integrator Load Card

Part number:371543

Used in:IBM 7070

Symbol:R

R: Load. Provides proper terminating impedance or optimum coupling of one circuit to another at the correct operating voltage level.

Family: current mode
