This page describes the IBM SMS card "DHF", and is part of the SMS card database.

Function of the card:
Trigger and Driver
Sdttl trigger and driver
SDTDL trigger and driver

Saturated Drift Transistor Diode Logic (SDTDL) is a form of Diode-transistor logic using faster drift-field transistors.

Trigger is IBM's term for a flip flop or latch.

Part number:370350

Field replacement part number:370350

Customer Eng reference number:729925

PCB number:484127

Used in:IBM 1401,IBM 1311 Disk,IBM 1443 Printer,IBM 2821 Control Unit,IBM 1410

References:
2_2 SMS Cards, p101.
1410_SMS_VOL_1.pdf/1410_SMS_VOL_2.pdf, p1089.
IBM 1311 ILD, p127.
IBM 1443 ALD, p103.

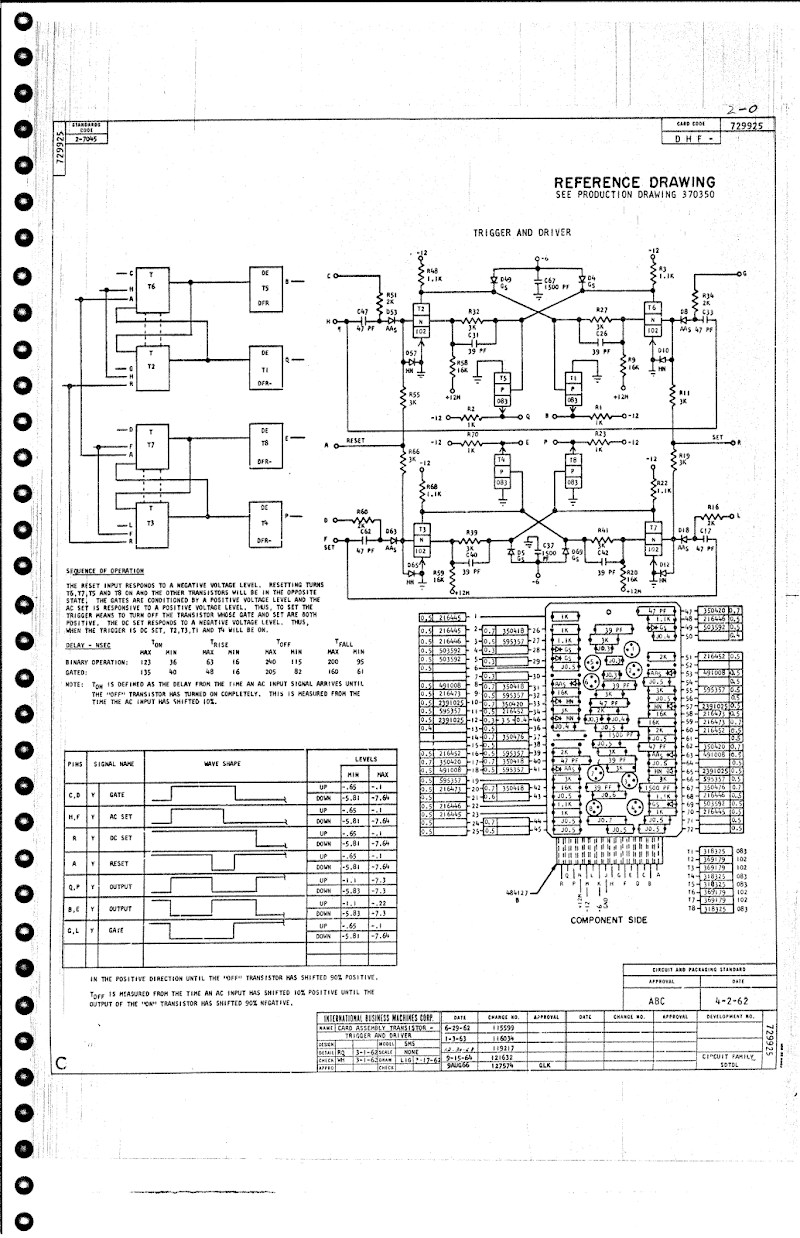

IBM 2821 CCD, p59.
This page created by Ken Shirriff, 2015.

The information on these pages comes from a variety of sources, especially old IBM documents on bitsavers.org, as well as information from the IBM 1401 restoration team, especially Tim Coslet's SMS data and Jim Hunt's data. Images courtesy of Randall Neff. Much of this information was obtained through OCR, so don't expect complete accuracy. These pages are not associated with IBM in any way.

Creation time: Tue Mar 03 23:40:33 2015.
