This page describes the IBM SMS card "DEYW", and is part of the SMS card database.

Function of the card:
Two-Way AND-Block Extender

Part number:371325

Used in:IBM 7090

Symbol:E

E: Extender. Provides additional inputs to logical blocks and triggers. Adds to drivers the ability to drive more loads.

Family: diffused junction

References:

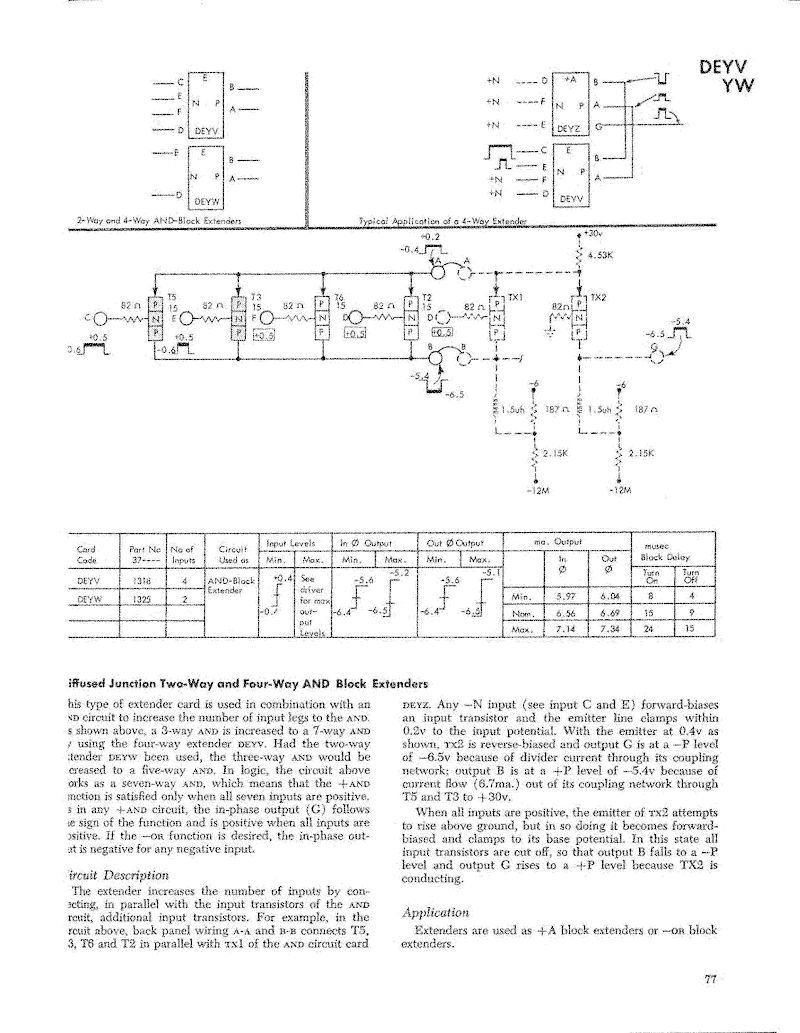

IBM Standard Modular System, Component Circuits, p77.
This page created by Ken Shirriff, 2015.
