This page describes the IBM SMS card "DDZR", and is part of the SMS card database.

Function of the card:
Minus Exclusive OR (in-phase load)

Part number:371305

Used in:IBM 7090

Symbol:-OE

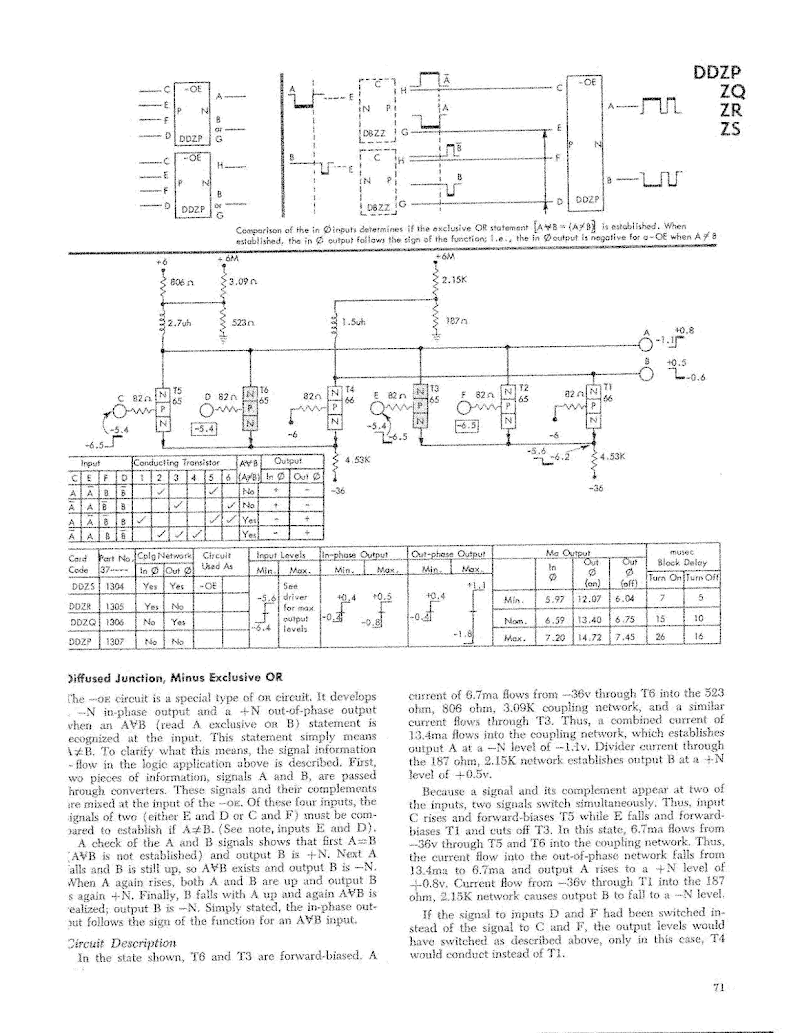

-OE: Negative Exclusive OR. In-phase output is negative only when inputs differ (A up and B down, or B up and A down). Out-of-phase output is positive for the above conditions.

Family: diffused junction

References:
IBM Standard Modular System, Component Circuits, p71.
This page created by Ken Shirriff, 2015.
