This page describes the IBM SMS card "CT", and is part of the SMS card database.

Function of the card:
P Type Ltrie Driver
Ctdl - npn line driver

Complemented Transistor Diode Logic (CTDL) is IBM's term for a form of diode-transistor logic.

Part number:371521

Used in:IBM 7070,IBM 1410

Symbol:DL

DL: Driver, Line. Used to couple information between two widely separated points by means of coaxial line.

Family: CTDL

References:

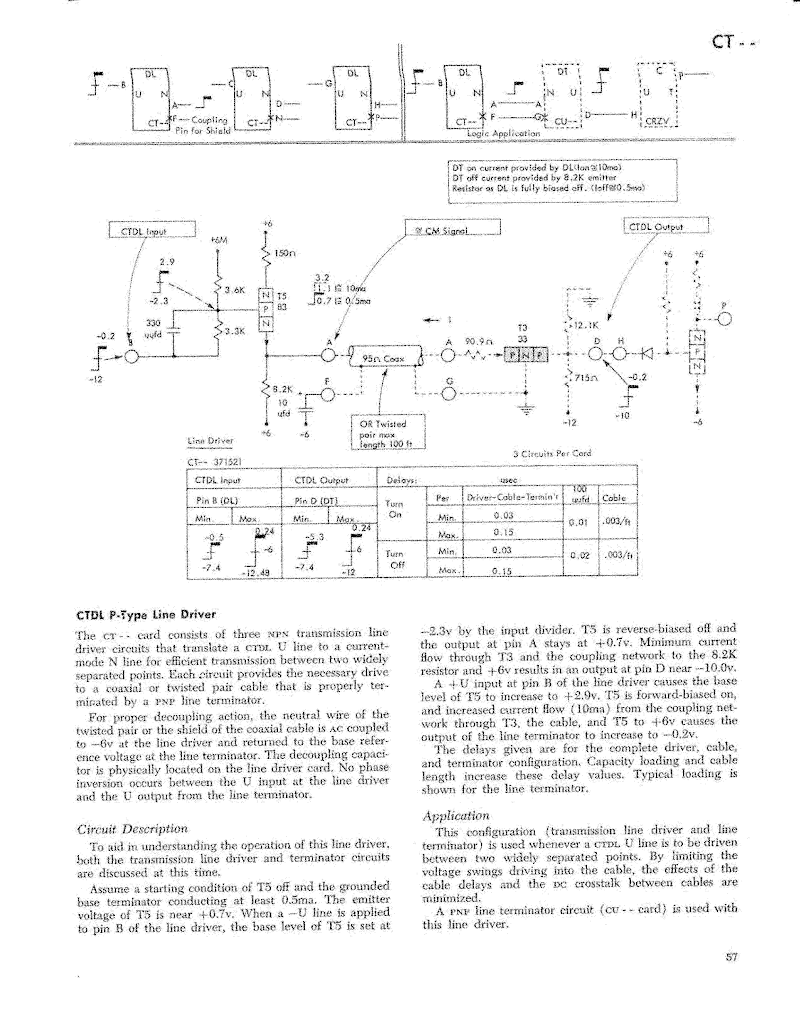

IBM Standard Modular System, Component Circuits, p57.
1410_SMS_VOL_1.pdf/1410_SMS_VOL_2.pdf, p2086.
This page created by Ken Shirriff, 2015.

The information on these pages comes from a variety of sources, especially old IBM documents on bitsavers.org, as well as information from the IBM 1401 restoration team, especially Tim Coslet's SMS data and Jim Hunt's data. Images courtesy of Randall Neff. Much of this information was obtained through OCR, so don't expect complete accuracy. These pages are not associated with IBM in any way.

Creation time: Tue Mar 03 23:40:33 2015.
