This page describes the IBM SMS card "CM", and is part of the SMS card database.

Function of the card:
CTDL-Coupling Network
CM to CTDL Coupling Network

Complemented Transistor Diode Logic (CTDL) is IBM's term for a form of diode-transistor logic.

Part number:371256

Field replacement part number:371256

Customer Eng reference number:729840

Used in:IBM 1401,IBM 7070,IBM 1410

Symbol:R

R: Load. Provides proper terminating impedance or optimum coupling of one circuit to another at the correct operating voltage level.

Family: CTDL

References:

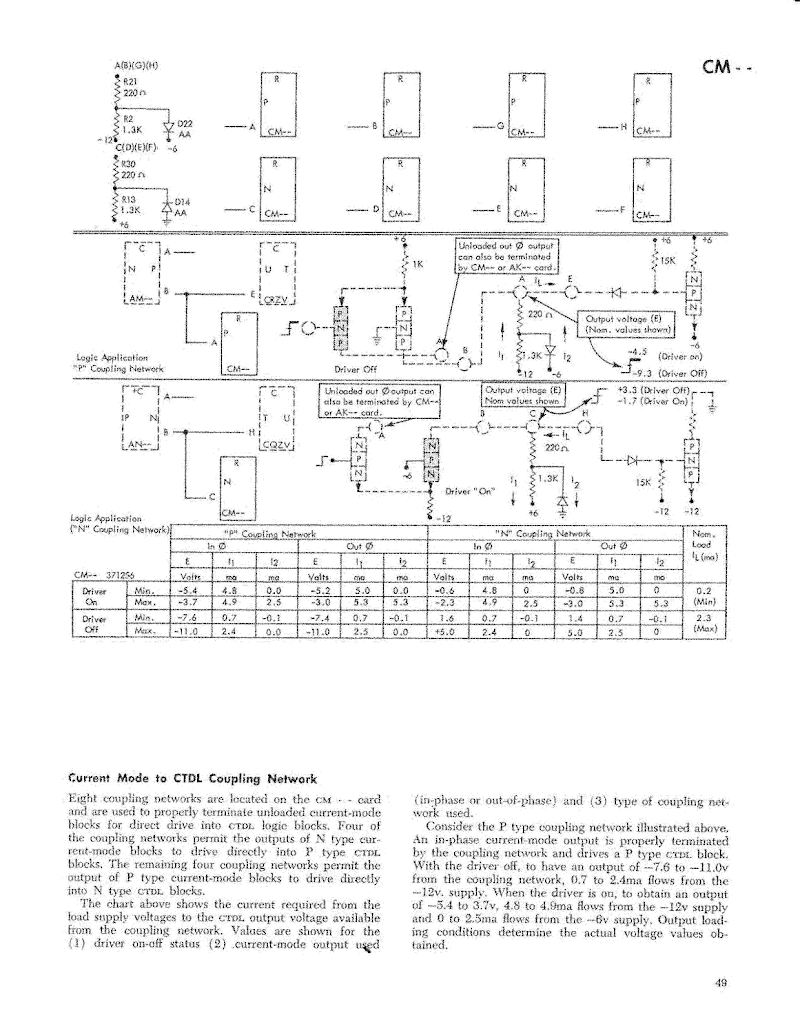

IBM Standard Modular System, Component Circuits, p49.
1_2 SMS Cards, p102.
1410_SMS_VOL_1.pdf/1410_SMS_VOL_2.pdf, p2070.
