This page describes the IBM SMS card "CEYB", and is part of the SMS card database.

Function of the card:
CTRL-Emitter Follower PNP

Quad Emitter Follower

Complemented Transistor Resistor Logic (CTRL) is IBM's term for a form of resistor-transistor logic.

Part number:371032

PCB number:491155

Used in:IBM 1620,IBM 1414 I/O Synchronizer,IBM 1311 Disk,IBM 729II/V,IBM 1410

Symbol:DE

DE: Driver Emitter Follower. A driver, operating on the emitter follower principle, used for power amplification, impedance matching, and isolation without inversion. Often used as a logical element.

Transistor type:025/033

References:

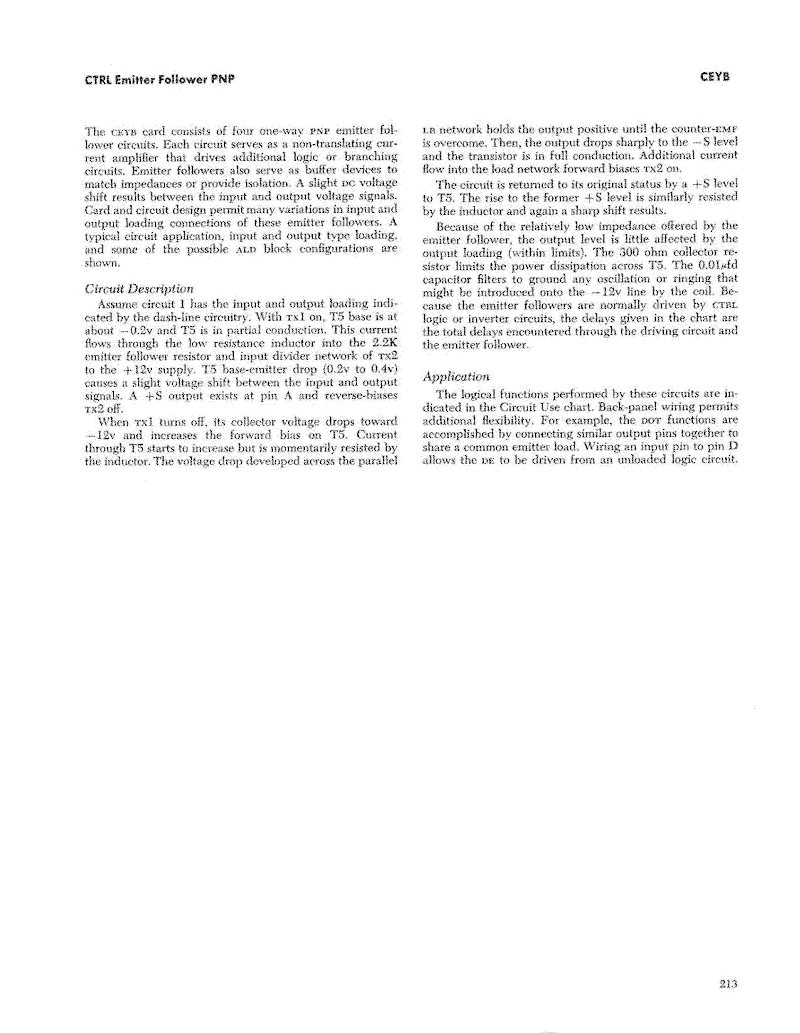

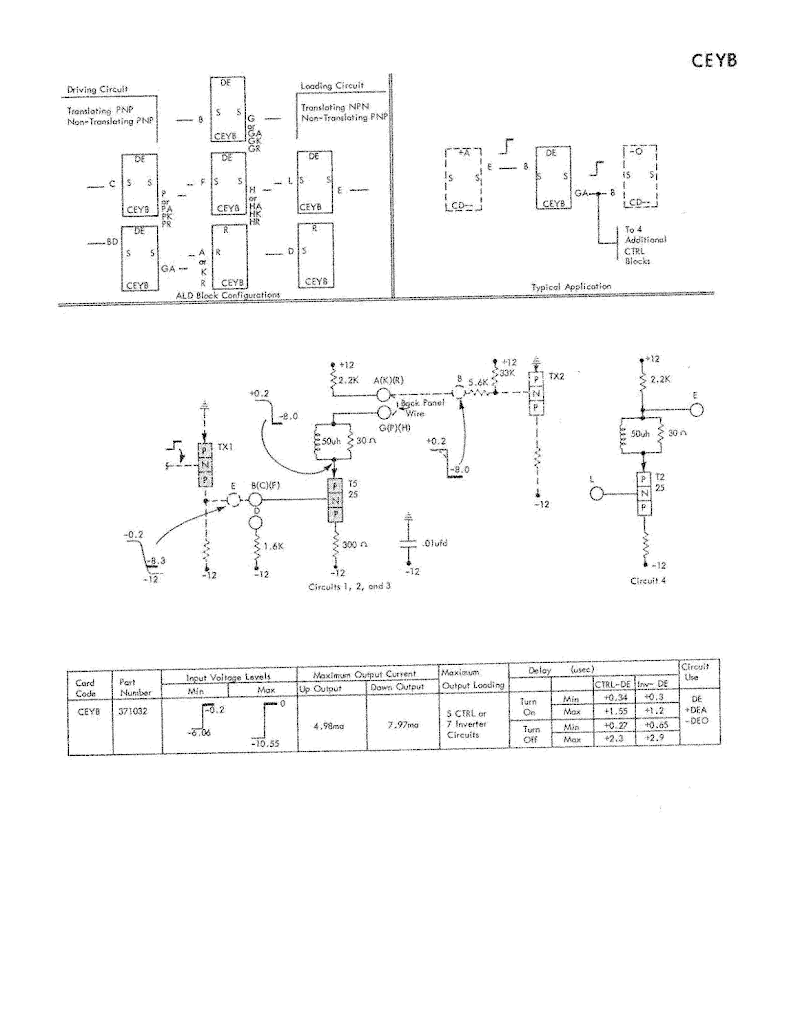

IBM Standard Modular System, Component Circuits, p212,213.
1410_SMS_VOL_1.pdf/1410_SMS_VOL_2.pdf, p2056.
1414 SMS Cards, p20.
IBM 1311 ILD, p110.

Pinout:

A PU1
B I1
C I2
D PDR
E O4
F I3
G O1E
H O3E
J GND
K PU2
L I4
M -12V
N
P O2E
Q +12V
R PU3

This page created by Ken Shirriff, 2015.
