This page describes the IBM SMS card "AK", and is part of the SMS card database.

Function of the card:
N and P Block Coupling Networks
Alloy coupling netwrks for n&p blcks

Germanium alloy transistors were an early type of transistor, faster than the earlier grown-junction transistors.

Part number:371241

Used in:IBM 1414 I/O Synchronizer,IBM 7070,IBM 7090,IBM 729V

Symbol:R

R: Load. Provides proper terminating impedance or optimum coupling of one circuit to another at the correct operating voltage level.

Family: current mode

References:

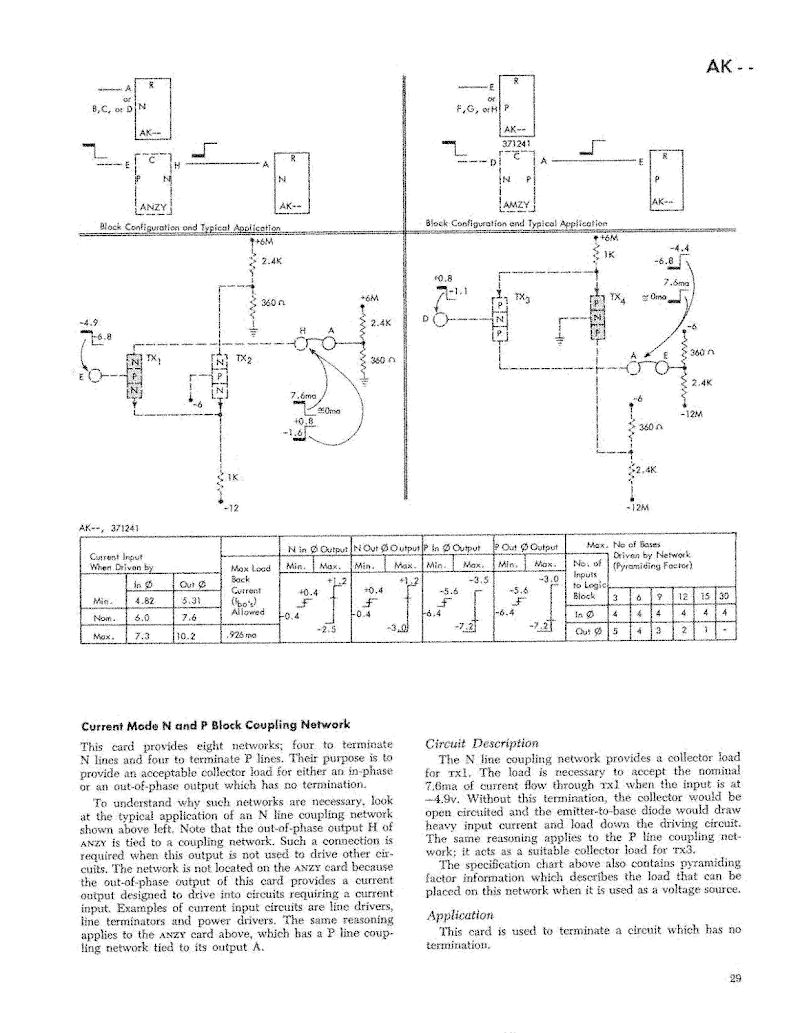

IBM Standard Modular System, Component Circuits, p29.
1414 SMS Cards, p54.
