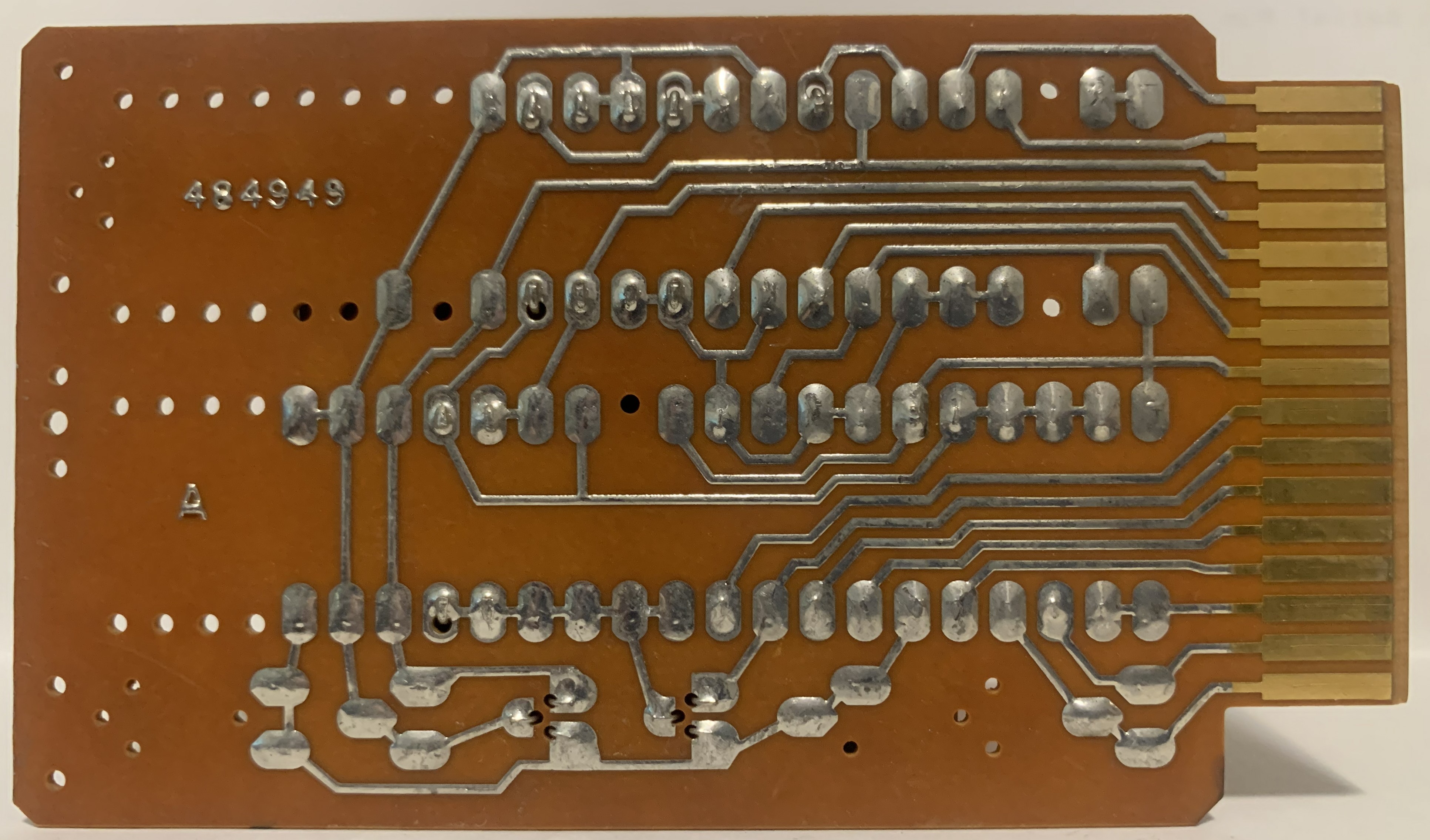

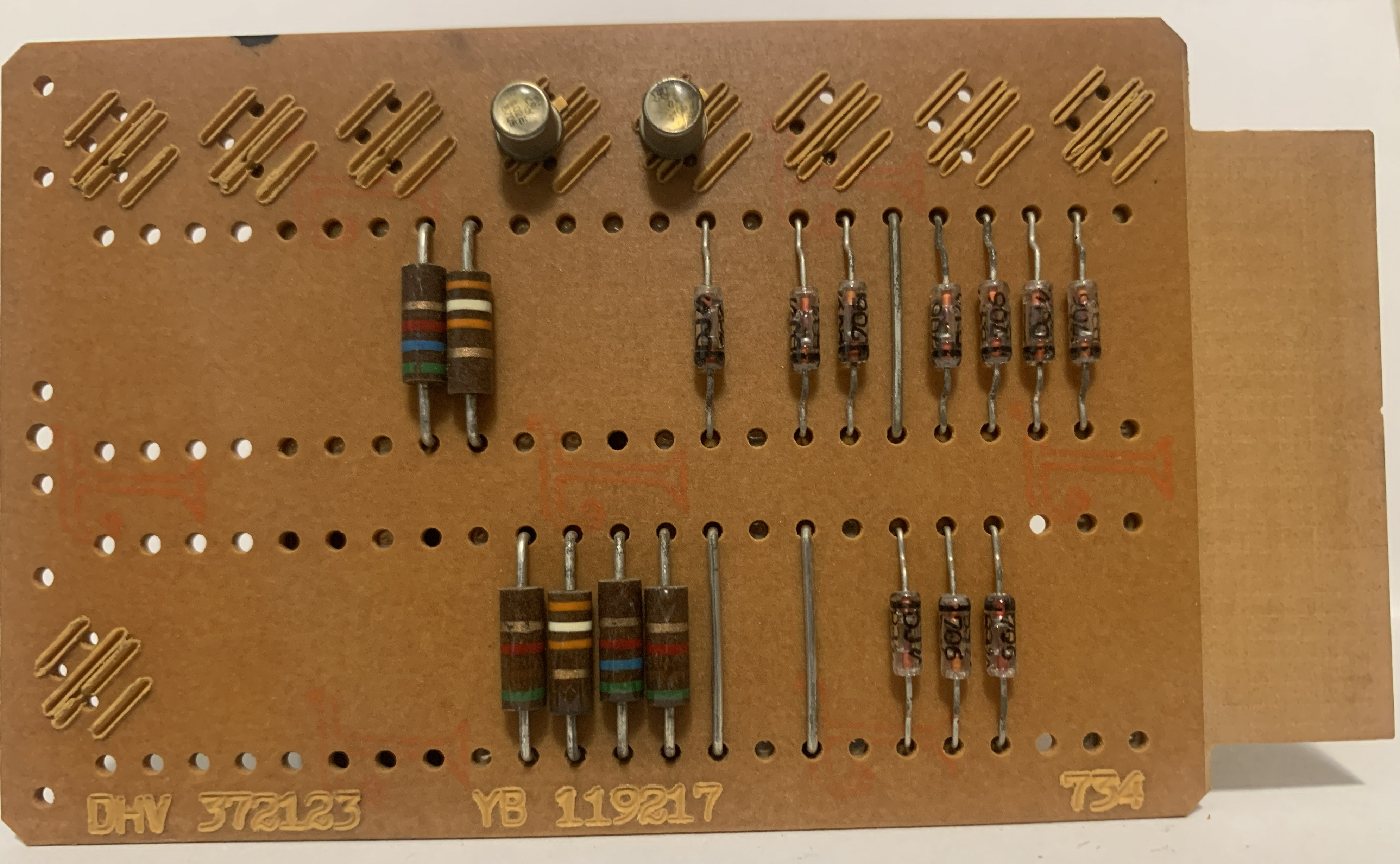

This page describes the IBM SMS card "DHV", and is part of the SMS card database.

Function of the card:
SDTDL 1-6, 1-4 way -a wo/load
1-6 Way, 1-4 Way W/O Load (-A)
1-6 way 1-4 way-a no load
1 - 6 way, 1 - 4 way w/o load (-a)

Saturated Drift Transistor Diode Logic (SDTDL) is a form of Diode-transistor logic using faster drift-field transistors.

Part number: 372123

Customer Eng reference number: 734301

Used in: IBM 1311 Disk, IBM 1443 Printer, IBM 2821 Control Unit

Cap code: None (details)

References: IBM 2821 CCD, p61
National Museum of Computing.
IBM 1443 ALD, p105
IBM 1311 ILD, p129
