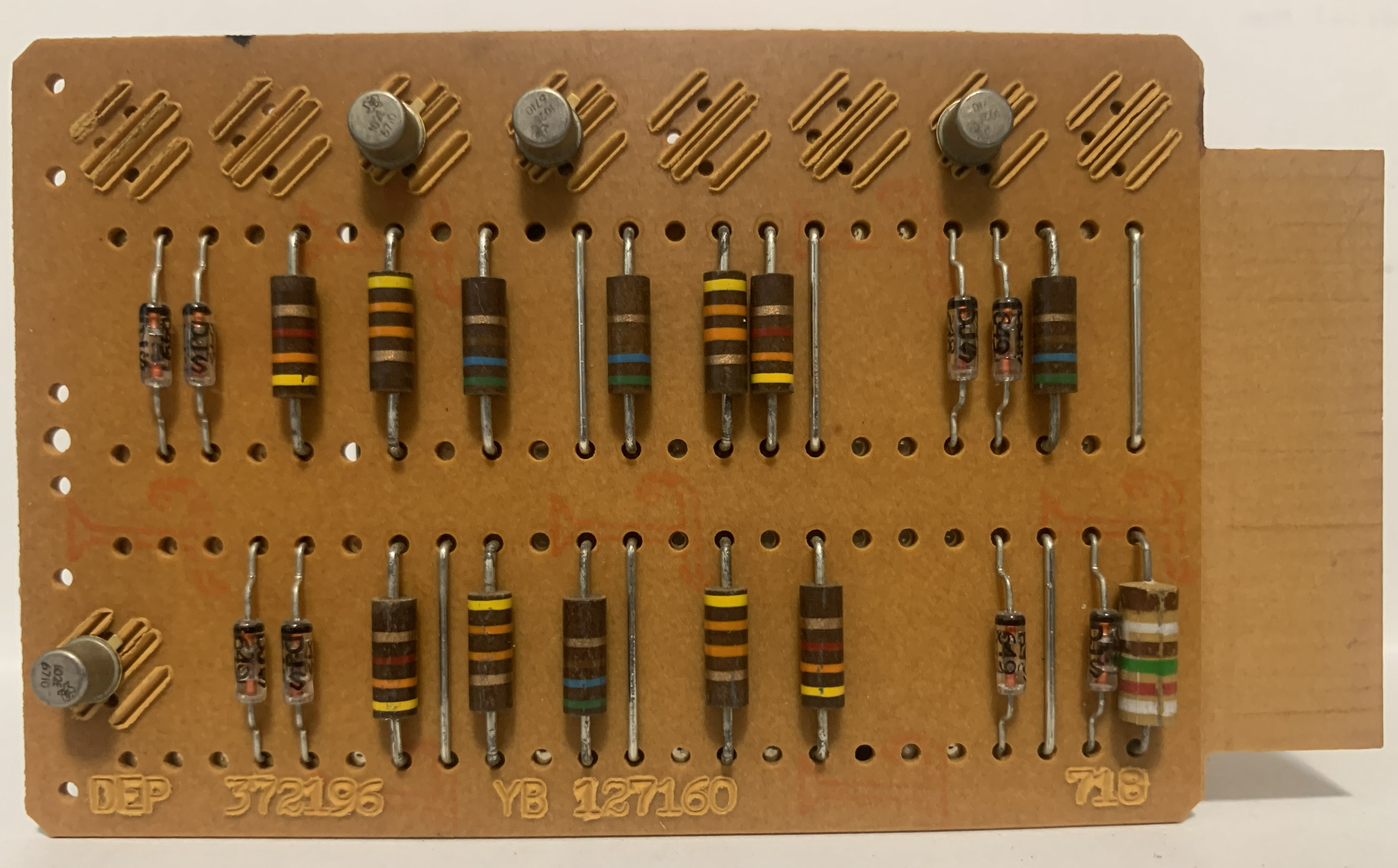

This page describes the IBM SMS card "DEP", and is part of the SMS card database.

Function of the card:
4-2 way plus and w/load

Part number: 372196

Customer Eng reference number: 734305

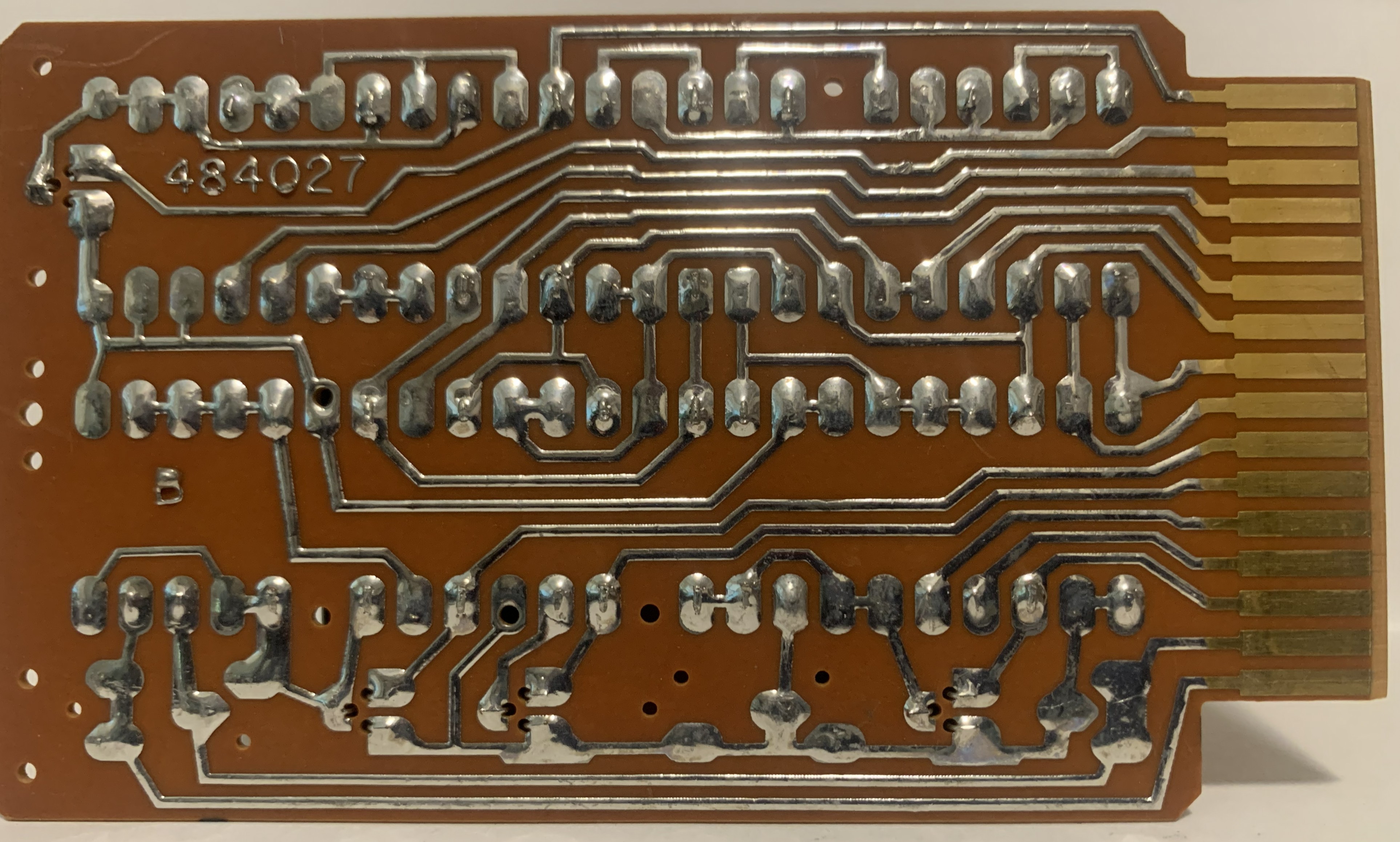

PCB number: 484027

Used in: IBM 2821 Control Unit

Symbol:+A

+A: Positive AND. in-phase output is positive only when all inputs are positive. Out-of-phase output is negative for the above condition.

References: IBM 2821 CCD, p41
This page created by Ken Shirriff on Wed Sep 15 18:15:11 2021.

The information on these pages comes from a variety of sources, especially old IBM documents on bitsavers.org, as well as information from the IBM 1401 restoration team, especially Tim Coslet's SMS data and Jim Hunt's data. Much of this information was obtained through OCR, so don't expect complete accuracy. These pages are not associated with IBM in any way.
