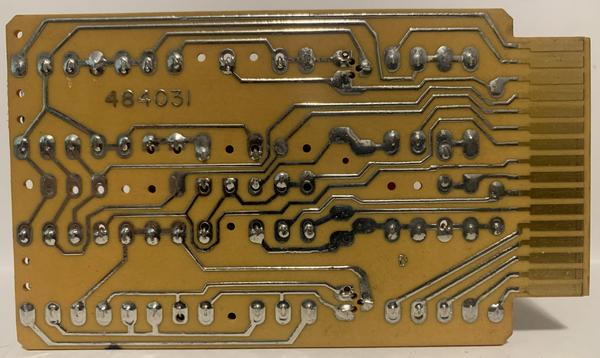

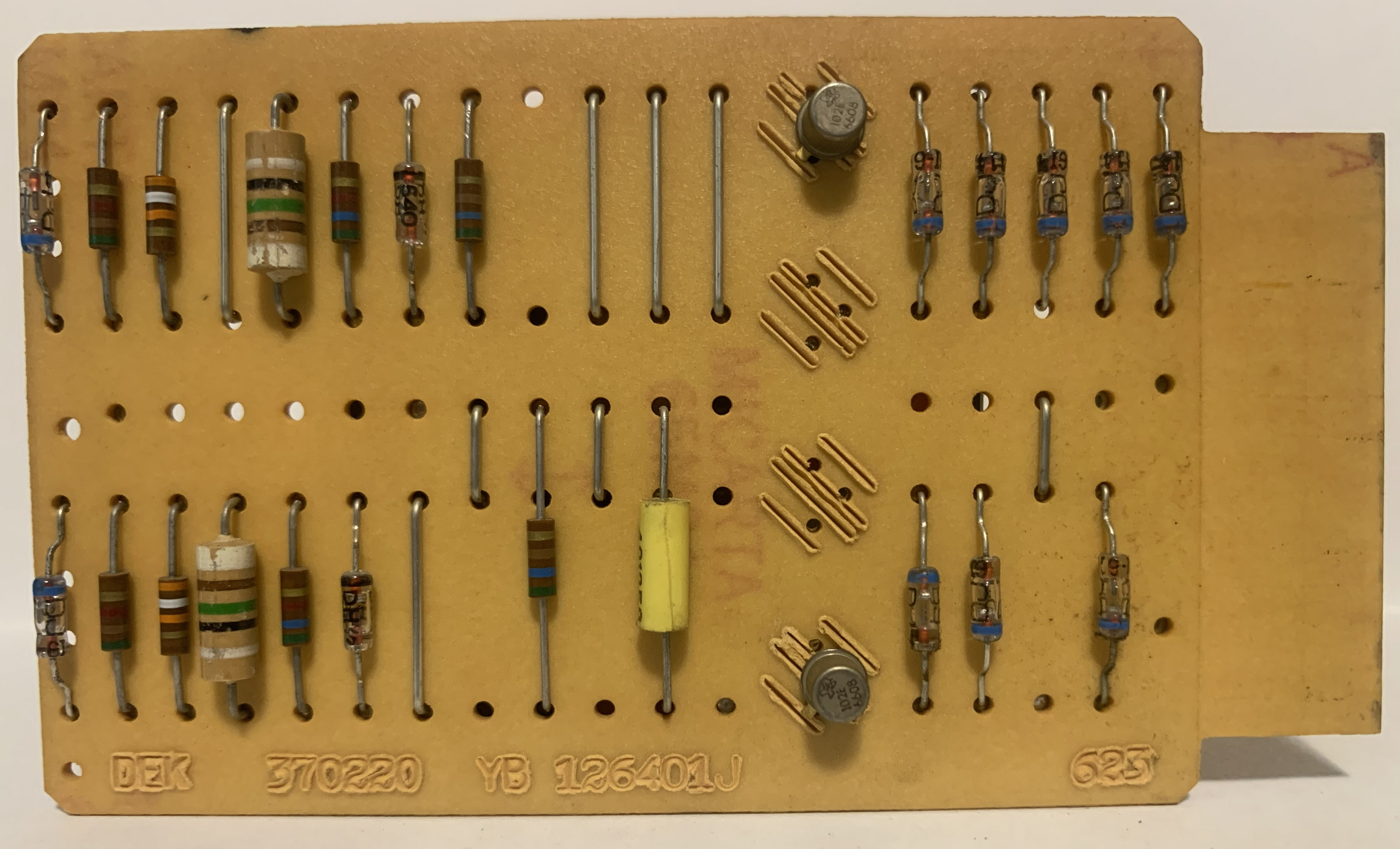

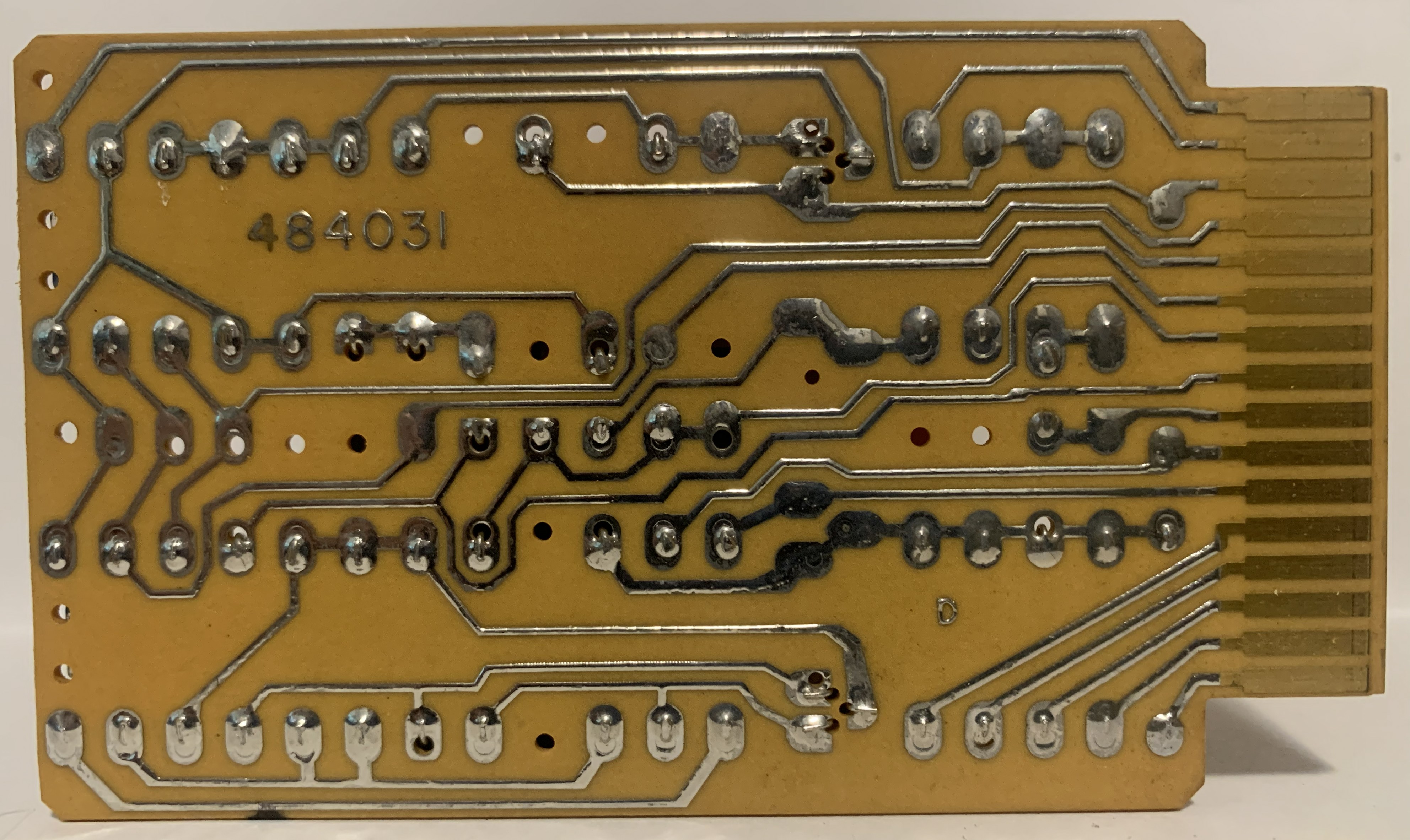

This page describes the IBM SMS card "DEK", and is part of the SMS card database.

Function of the card:
SDTDL - two 5-way n and logic blocks with loads

Saturated Drift Transistor Diode Logic (SDTDL) is a form of Diode-transistor logic using faster drift-field transistors.

Part number: 370220

PCB number: 399589 , hole pattern: 399402

Used in: IBM 1410, IBM 1311 Disk

Cap code: None (details)

Symbol: -A

-A: Negative AND. In-phase output is negative only when all inputs are negative. Out-of-phase output is positive for the above condition.

References: IBM 1311 ILD, p114
1410_SMS_VOL_1.pdf, p37
