This page describes the IBM SMS card "DHH", and is part of the SMS card database.

Function of the card:
SDTDL double level logic block #2a low speed, wo loads
SDTDL-Double Level Logic Block #2A Low Speed, wo Loads

Listed in 1401 SMS card usage

Saturated Drift Transistor Diode Logic (SDTDL) is a form of Diode-transistor logic using faster drift-field transistors.

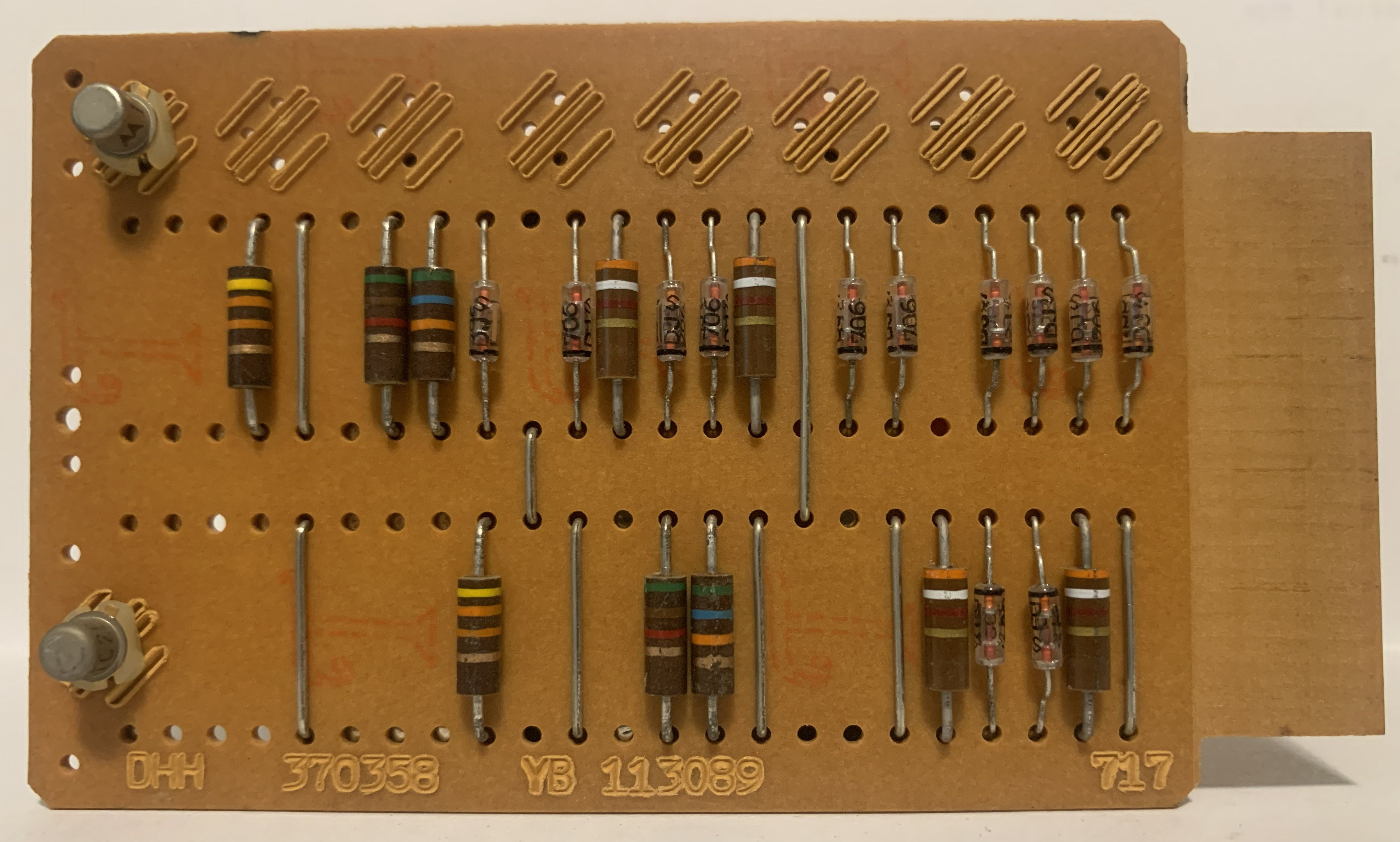

Part number: 370358

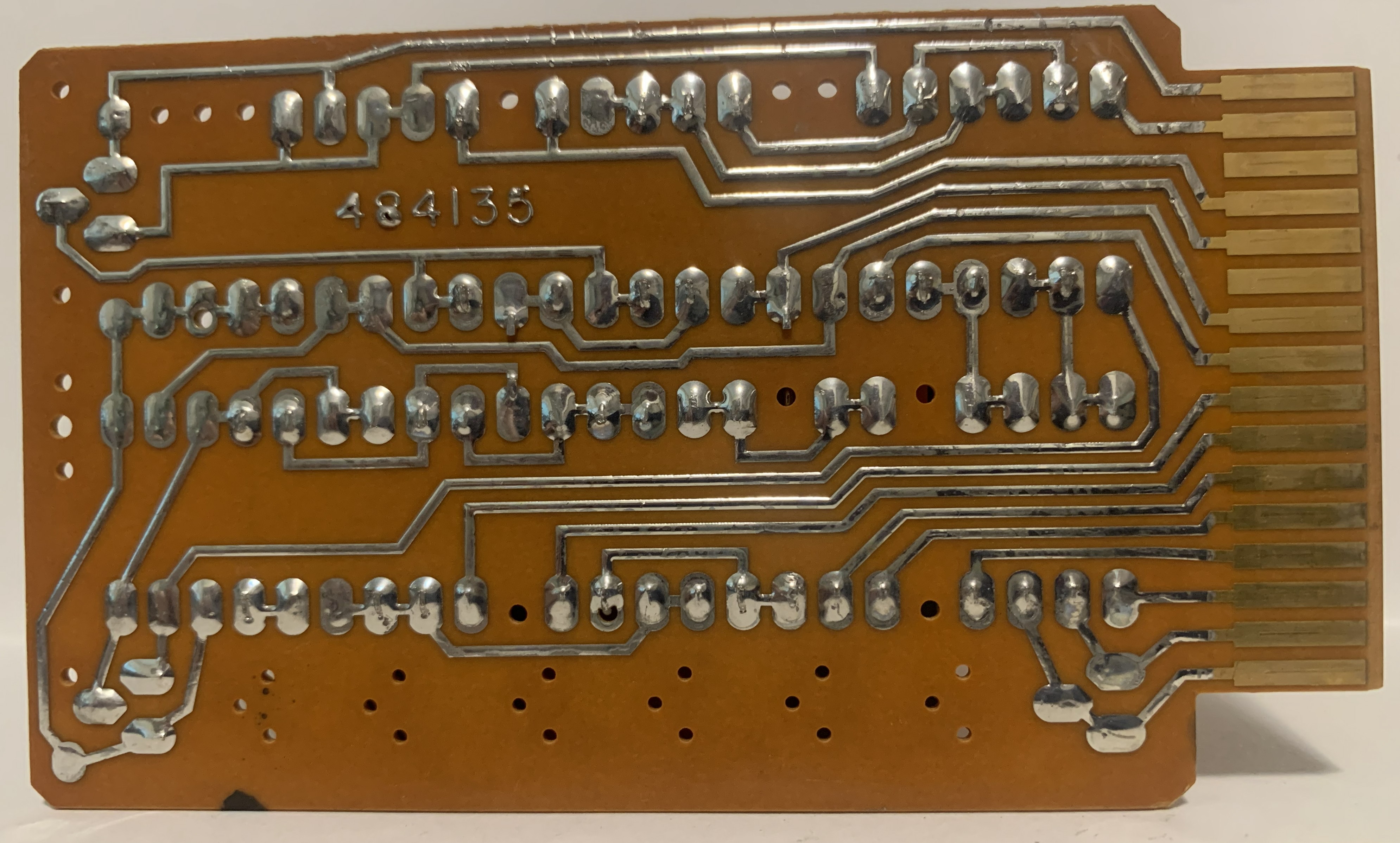

PCB number: 484135

Used in: IBM 1401, IBM 1410

References: 2_2 SMS Cards, pp103,104
1410_SMS_VOL_1.pdf, p92
Coslet data
